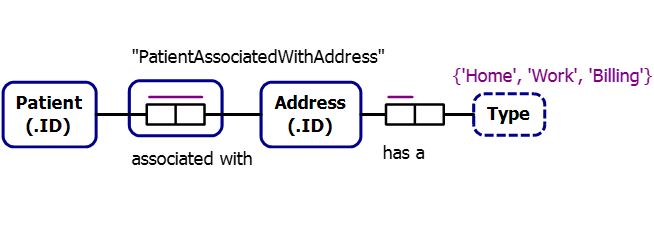

Patient associated with Address.

ORM Summary:

• For the population of patients associated with addresses, each patient is linked to at least one address and each address is linked to at least one patient. It is possible for a patient to be associated with multiple addresses, and for an address to be associated with multiple patients. However, within this population, each combination of patient and address occurs only once. This association between patients and addresses is the preferred method for identifying patients within the context of their associated addresses.
  • Addresses have types, and each address is associated with at most one type. However, it is possible for multiple addresses to be associated with the same type.

ORM Verbalizer:

1. Patient associated with Address.
   It is possible that some Patient associated with more than one Address
   and that for some Address, more than one Patient associated with that Address.
   In each population of Patient associated with Address, each Patient, Address combination occurs at most once.
   This association with Patient, Address provides the preferred identification scheme for PatientAssociatedWithAddress.
2. Address has a Type.
   Each Address has a at most one Type.
   It is possible that more than one Address has a the same Type.

3NF Diagram
